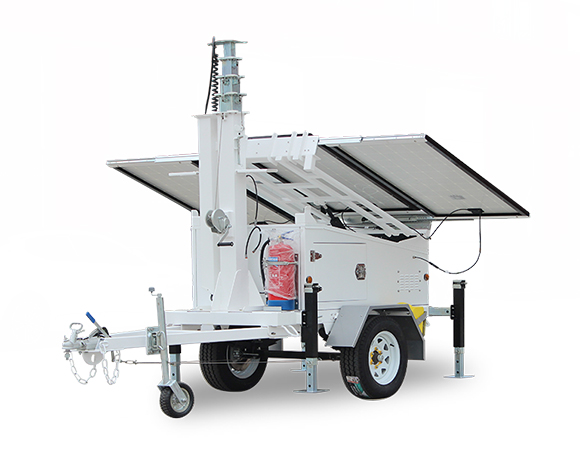

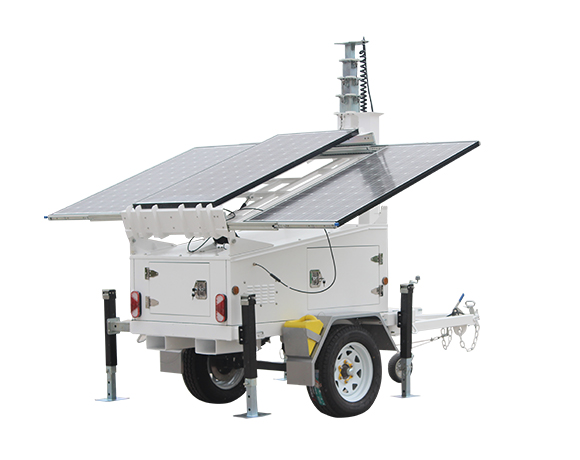

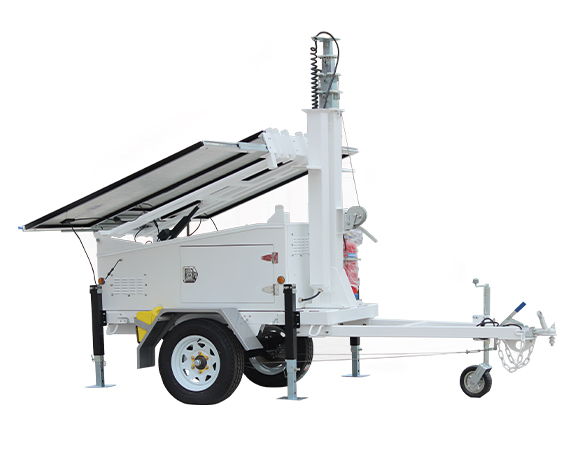

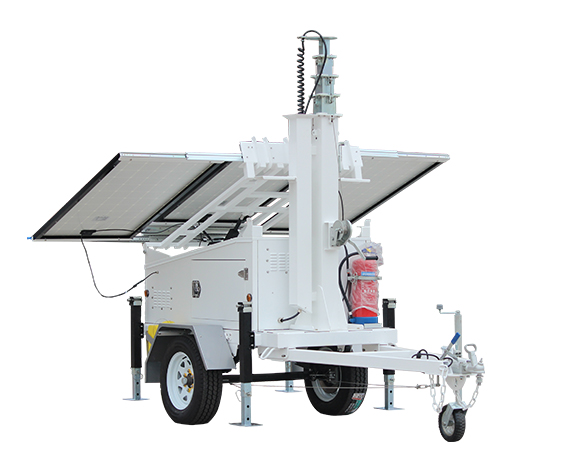

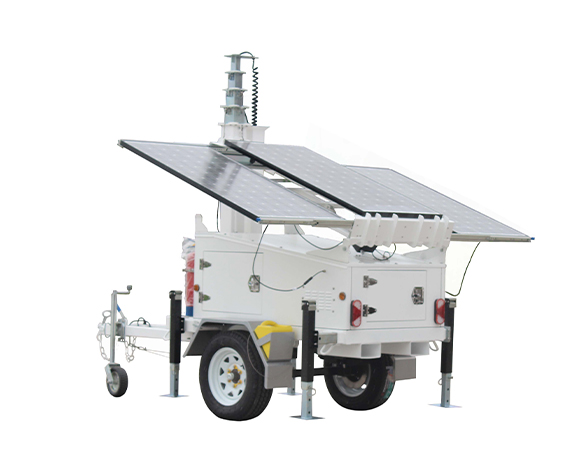

Solar Powered Trailer VTS3P Mini

Medium-Small Size Single Axle Solar Trailer VTS3P Mini
1. 3*300W solar panels
2. 7.2kWh/9.6kWh gel/lithium batteries,DC24V system
3. Optional 6 to 9 meters manual/electric/ hydraulic mast
4. Single axle trailer with Australia/North America standard

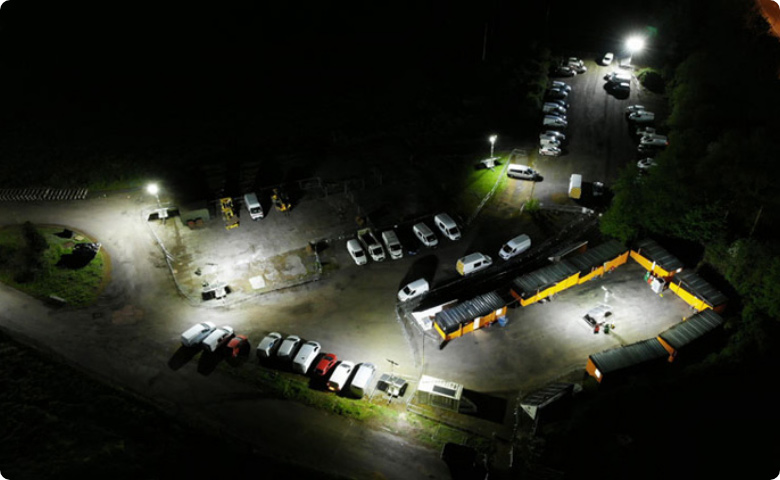

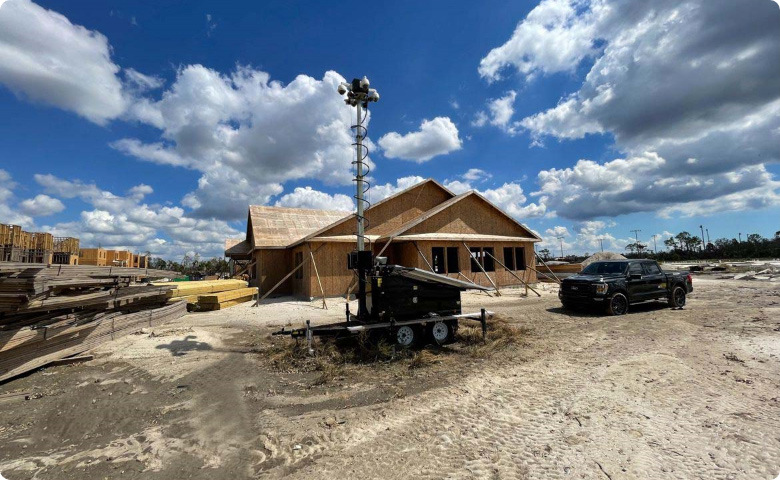

5. Widely used in CCTV security,communication,lighting etc

Chat Now

Compared

Download

Advantages

This small trailer is cost-effective and suitable for carrying low-power equipment. Protection factor up to IP65, waterproof and dustproof, high temperature resistance, high stability. And the solar panel Angle can be adjusted, suitable for use in any region of the world.

"0" Fuel consumption "0" Pollution

Using solar energy as the main energy source, no need to add fuel.

Maintenance-free

There is no maintenance required for the use of the solar powered trailer, which only requires regular inspection of mast's rope wear and regular replacement.

"0" Noise

There is no noise during use,it is very quiet.

Features

·Energy saving and environmental protection, "0" noise, "0" pollution;
·Mast lifts safely and reliably;
·Easy operation and maintenance;
·Beautiful appearance, corrosion and rust prevention;
·High stability;
·Compact structure for long distance transportation;
·Quick and easy deployment;

Optional 6 to 9 meters manual/electric/hydraulic mast

The box can hold 4 150Ah or 200Ah batteries

The outrigger can adjust height according to the terrain,every outrigger can hold up 1000 kgs

The guide wheel. Guide wheels can be used to change the direction of forward motion when moving the trailer.

Elevating solar panel bracket

Detail

The display of details helps customers to have an in-depth understanding of our products.

Detail 01

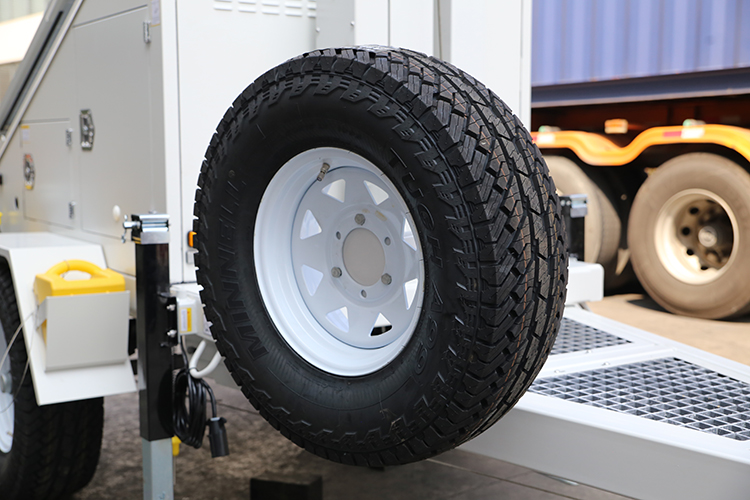

The spare tire of the same size is used to cope with complex outdoor road conditions, so that the trailer can replace the spare tire in the case of tire leakage, puncture, etc., and continue to drive.

Detail 02

Press the button to control the winch to tighten the wire rope or release the wire rope, so that you can easily control the rise and fall of the mast.

Detail03

The trailer and the four outriggers are equipped with positioning holes to lock the position of the outriggers through latches, thus ensuring the stability of the trailer.

If you want to know more, please consult us promptly.

No flimsy plastic casings here. Our best-selling metal power stations are designed to withstand the test of time.

Chat Now Whatsapp

Length:

3600mm

Width:

1470mm

Height:

2450mm

Weight:

1050kg

Trailer Type:

Single Axle

Stabilizer Support:

4*Manual

Drawbar:

A Frame

Tow Hitch:

50mm Ball/70mm Ring

Working Temperature:

-35~60℃
