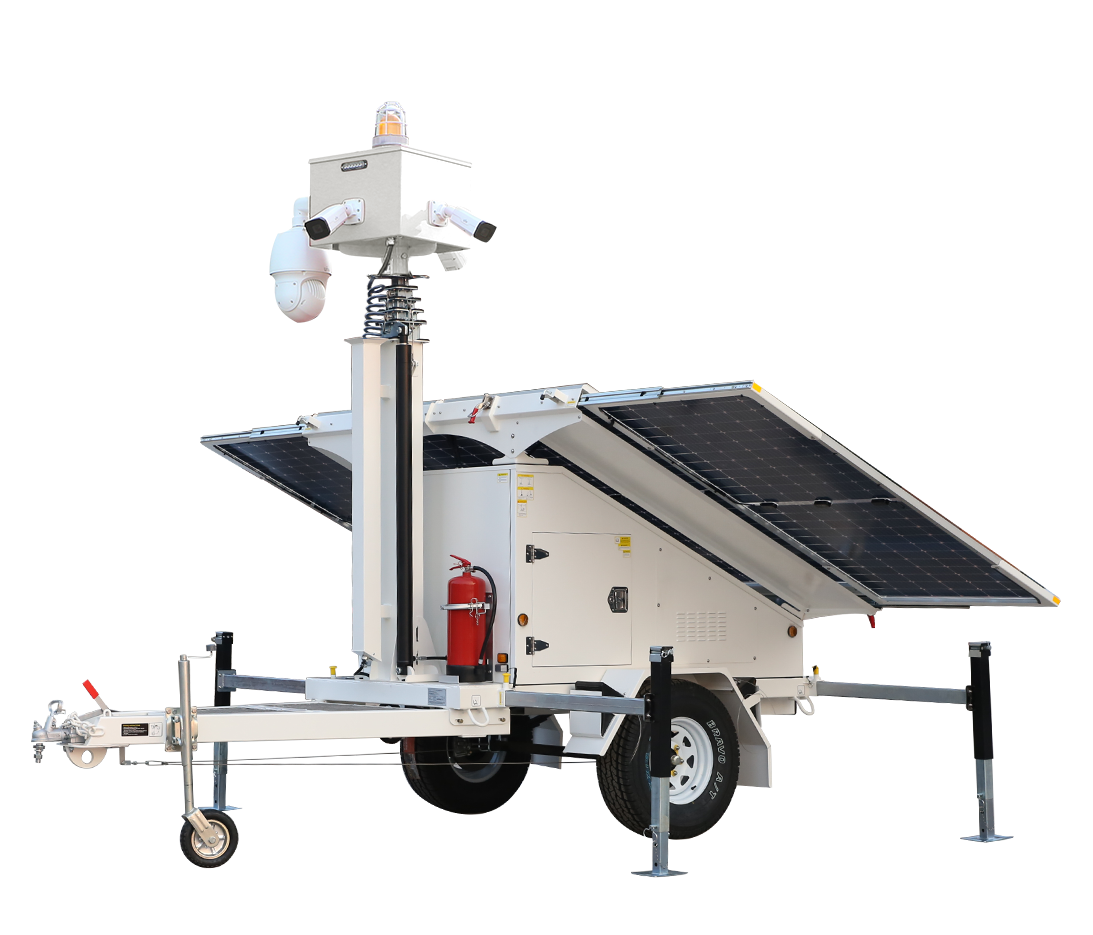

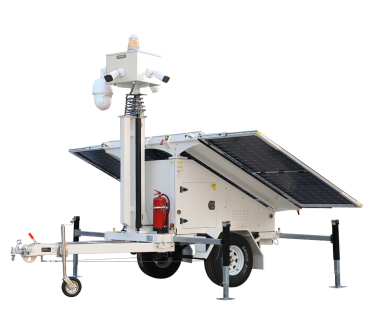

Solar Trailer VTS4P

Medium Size Single Axle Solar Trailer VTS4P
1. 4*450W solar panels
2. 9.6kWh/14.4kWh/19.2kWh Gel batteries,DC24V system
11kWh/16.5kWh/20.16kWh LFP batteries,DC48V system
3. Be equipped with Victron 70A MPPT,optional current protector,
battery monitor,remote control,etc
4. Optional 6 to 9 meters manual/electric/ hydraulic mast
5. Single axle trailer with Australia/North America standard
6. 2*CAT6+2*2.5mm²+6*1.5mm² Spring Cable
7. Widely used in CCTV security,communication,lighting etc
8.Can accept different customization

Chat Now

Compared

Download

Advantages

This is a mid-sized trailer that generates and stores more power and is fully functional. Equipped with 4*450W solar panels, rated voltage DC24V/DC48V, more power. And can be customized according to customer needs, even can increase the size of the trailer, lengthening the mast display length (up to 18m). And the single axle can be changed into a double axle, which can accommodate more batteries and other electrical components under the guarantee of the stability of the trailer.

The box capacity is larger

The VTS4P's box can holds batteries, hydraulic power units, a small generator and other electrical components. If the customer needs, we can also increase the size of the trailer for the customer to meet the needs of customers.

Long battery life

Because it is equipped with high-power solar panels and carries a large number of batteries. Even under unsatisfactory lighting conditions, Can support 200W electrical equipment work over 90 hours.

High stability and security

Due to the large number of components, the weight of this trailer is more than 1400kg, and has a perfect structural design, so that whether it is driving on the road, or deployed for outdoor use, its stability is very good, the mast can loads over 100kg and the windproof is 120kph.

Solar Trailer VTS4P

·Energy saving and environmental protection, "0" noise, "0" pollution;
·Mast lifts safely and reliably;
·Easy operation and maintenance;
·Beautiful appearance, corrosion and rust prevention;
·High stability;
·Perfectly designed and fully functional;
·Long-lasting battery life;

Adjustable Angle 4*450W solar panels

Mast bearing capacity over 100kg, can be installed CCTV box, LED lights and communication system

Ball hitch

The trailer can be equipped with a diesel/gasoline generator

Equipped with input plug for batteries charging

Detail

The display of details helps customers to have an in-depth understanding of our products.

Detail01

The solar panel lock ensures that the solar panel can be stable when extended or retracted.

Detail02

Optioal manual/electric/hydraulic winch.

Detail03

North America/Australia/European standard taillights.

If you want to know more, please consult us promptly.

No flimsy plastic casings here. Our best-selling metal power stations are designed to withstand the test of time.

Chat Now Whatsapp

Length:

4050mm

Width:

2160mm

Height:

2520mm

Weight:

1400kg

Trailer Type:

Single Axle/Dual Axle

Stabilizer Support:

4*Manual

Drawbar:

A Frame

Tow Hitch:

50mm Ball/70mm Ring

Working Temperature:

-35~60℃

Application

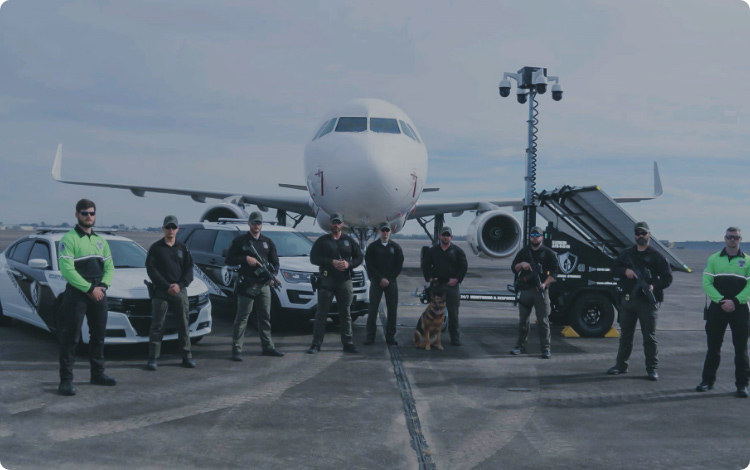

Airport Lighting and Security

Mine&Oil Lighting

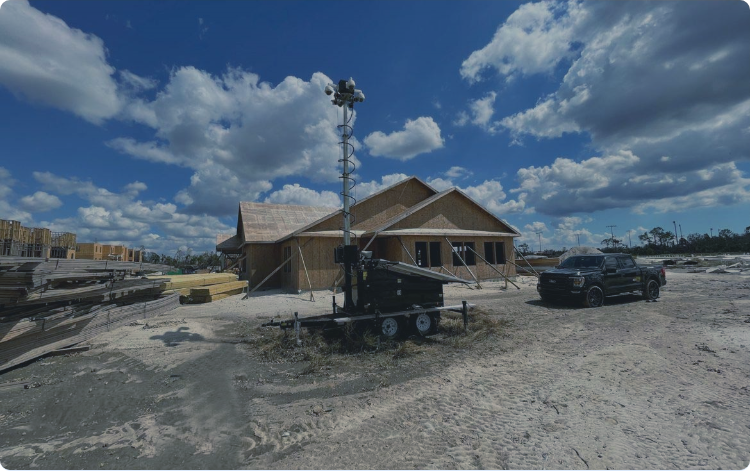

Warehouse Security
